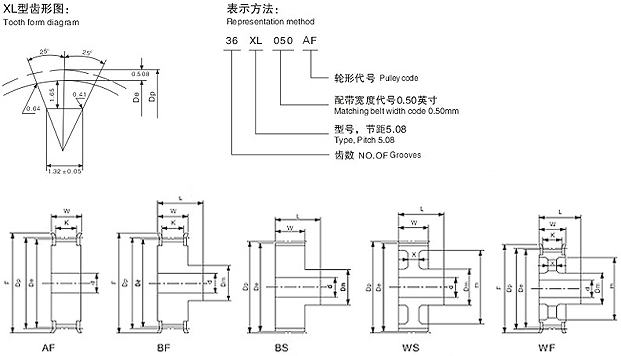

XL型标准皮带宽050（12.7mm）
规格	齿数	形状	节径	外径	W	L	K	X	轮毂直径	内孔	透孔外径	档边外径	档边内径	档边型号
10XL	10	A\B	16.17	15.66	18	30	14	-	9.5	6	-	23	12	F-102312
11XL	11	A\B	17.79	17.28	18	30	14	-	9.5	6	-	23	13	F-102313
12XL	12	A\B	19.40	18.90	18	30	14	-	10	6	-	25	14	F-102514
14XL	14	A\B	22.64	22.13	18	30	14	-	15	6	-	28	18	F-102818
15XL	15	A\B	24.26	23.75	18	30	14	-	15	6	-	28	18	F-102818
16XL	16	A\B	25.87	25.36	18	30	14	-	16	6	-	31	20	F-103120
18XL	18	A\B	29.11	28.60	18	30	14	-	22	6	-	33	22	F-103322
19XL	19	A\B	30.72	30.22	18	30	14	-	24	6	-	35	22	F-103522
20XL	20	A\B	32.34	31.83	18	30	14	-	27	6	-	38	26	F-103826
21XL	21	A\B	33.96	33.45	18	30	14	-	28	6	-	38	26	F-103826
22XL	22	A\B	35.57	35.07	18	30	14	-	29	6	-	43	28	F-104328
24XL	24	A\B	38.81	38.30	18	30	14	-	33	8	-	44	32	F-104432
25XL	25	A\B	40.43	39.92	18	30	14	-	38	8	-	44	32	F-104432
26XL	26	A\B	42.04	41.53	18	30	14	-	38	8	-	47	34	F-104734
28XL	28	A\B	45.28	44.77	18	30	14	-	38	8	-	48	36	F-104836
30XL	30	A\B	48.51	48.00	18	30	14	-	38	8	-	55	39	F-105539
32XL	32	A\B	51.74	51.24	19	32	14	-	38	8	-	57	41	F-155741
34XL	34	A\B	54.98	54.47	19	32	14	-	38	8	-	61	41	F-156141
36XL	36	A\B	58.21	57.70	19	32	14	-	38	8	-	61	41	F-156141
38XL	38	A\B	61.45	60.94	19	32	14	-	38	8	-	65	50	F-156550
40XL	40	A\B	64.68	64.17	19	32	14	-	38	8	-	69	50	F-156950
42XL	42	A\B	67.91	67.41	19	32	14	-	38	8	-	74	53	F-157453
44XL	44	A\B	71.15	70.64	19	32	14	6	38	8	-	78	58	F-157858
45XL	45	W	72.77	72.26	19	32	14	6	38	10	60	-	-	-
48XL	48	W	77.62	77.11	19	32	14	6	38	10	64	-	-	-
50XL	50	W	80.85	83.58	19	32	14	6	38	10	67	-	-	-
57XL	57	W	90.55	91.66	19	32	14	6	38	10	74	-	-	-
60XL	60	W	97.02	96.51	19	32	14	6	38	10	83	-	-	-
70XL	70	W	113.19	112.68	19	32	14	6	38	10	100	-	-	-
72XL	72	W	116.43	115.92	19	32	14	6	38	10	102	-	-	-
