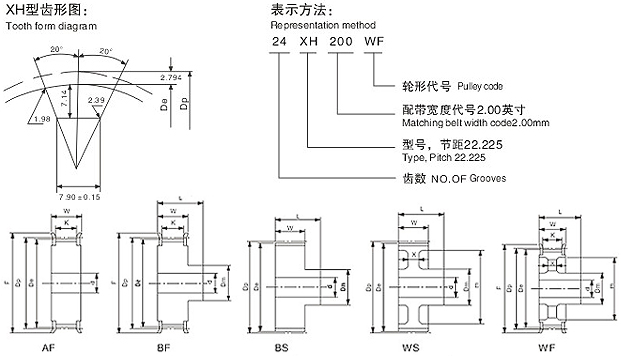

XH型标准皮带宽200（50.8mm）
规格	齿数	形状	节径	外径	W	L	K	X	轮毂直径	内孔	透孔外径	档边外径	档边内径	档边型号
18H	18	A/B	127.34	124.55	67	85	57	-	80	28	-	141	84	F-4014184
19H	19	A/B	134.41	131.62	67	85	57	-	90	28	-	146	93	F-4014693
20H	20	A/B	141.49	138.69	67	85	57	-	90	28	-	155	98	F-4015598
21H	21	A/B	148.56	145.77	67	85	57	-	120	28	-	160	105	F-4016105
22H	22	A/B	155.64	152.84	67	85	57	-	100	28	-	169	112	F-40169112
23H	23	A/B	162.70	159.91	67	85	57	-	120	28	-	175	124	F-40175124
24H	24	A/B	169.79	166.99	67	85	57	-	120	28	-	183	126	F-40183126
25H	25	A/B	176.86	174.04	67	85	57	-	120	28	-	188	134	F-40188134
26H	26	A/B	183.93	181.14	67	85	57	-	120	28	-	197	141	F-40197141
27H	27	A/B	191.01	188.22	67	85	57	-	120	28	-	205	148	F-40205148
28H	28	A/B	198.09	195.29	67	85	57	-	150	28	-	211	155	F-40211155
30H	30	A/B	212.23	209.44	67	85	57	-	150	28	-	226	169	F-40226169
32H	32	B/W	226.38	223.59	67	85	57	23	150	30	173	-	-	-
34H	34	B/W	240.53	237.74	67	85	57	23	150	30	177	-	-	-
38H	38	B/W	268.83	266.03	67	85	57	23	150	30	216	-	-	-
40H	40	B/W	282.98	280.18	67	85	57	23	150	30	230	-	-	-
46H	46	B/W	325.42	322.63	67	97	57	23	175	30	272	-	-	-
48H	48	B/W	339.57	336.78	67	97	57	23	175	30	286	-	-	-
58H	58	B/W	410.32	407.52	67	97	57	23	175	30	357	-	-	-
60H	60	B/W	424.47	421.67	67	97	57	23	175	30	370	-	-	-
70H	70	B/W	495.21	492.42	67	97	57	23	175	30	442	-	-	-
72H	72	B/W	509.36	506.56	67	97	57	23	175	30	456	-	-	-
80H	80	B/W	565.95	563.16	67	97	57	23	175	30	513	-	-	-
84H	84	B/W	594.25	591.46	67	97	57	23	175	30	456	-	-	-
96H	96	B/W	679.15	676.35	67	97	57	23	175	30	626	-	-	-
120H	120	B/W	848.93	846.14	67	97	57	23	175	30	796	-	-	-
