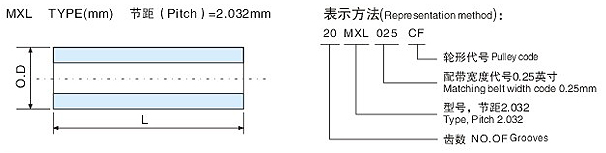

齿数	节径	外径	规格	L
10	6.47	5.96	10MXL100	100
11	7.11	6.61	11MXL100
12	7.76	7.25	12MXL100
13	8.41	7.90	13MXL100
14	9.06	8.55	14MXL100
15	9.70	9.19	15MXL100
16	10.35	9.84	16MXL100
17	11.00	10.49	17MXL100
18	11.64	11.14	18MXL100
19	12.29	11.78	19MXL100
20	12.94	12.43	20MXL100
21	13.58	13.08	21MXL100
22	14.23	13.72	22MXL100
23	14.88	14.37	23MXL100
24	15.52	15.02	24MXL100
25	16.17	15.66	25MXL100
26	16.82	16.31	26MXL100
27	17.46	16.96	27MXL100
28	18.11	17.60	28MXL100
30	19.40	18.90	30MXL100
32	20.70	20.19	32MXL100
36	23.29	22.78	36MXL100
40	25.87	25.36	40MXL100
44	28.46	27.95	44MXL100
48	31.05	30.54	48MXL100
50	32.34	31.83	50MXL100
60	38.81	38.30	60MXL100
70	45.28	44.77	70MXL100
72	46.57	46.06	72MXL100
80	51.74	51.24	80MXL100
84	54.33	53.82	84MXL100
96	62.09	61.59	96MXL100
100	64.68	64.17	100MXL100
120	77.62	77.11	120MXL100

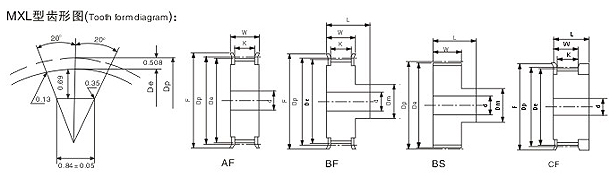

规格	齿数	形状	节径	外径	W	L	K	X	轮彀直径	内孔	档边外径	档边内径	档边型号
20MXL	20	C/A	12.94	12.43	11	16	7	-	9	6	18	11	F-101811
21MXL	21	C/A	13.58	13.08	11	16	7	-	9	6	18	11	F-101811
22MXL	22	C/A	14.23	13.72	11	16	7	-	9	6	18	11	F-101811
23MXL	23	C/A	14.88	14.37	11	16	7	-	10	6	20	12	F-102012
24MXL	24	C/A	15.52	15.02	11	16	7	-	10	6	20	12	F-102012
25MXL	25	C/A	16.17	15.66	11	16	7	-	10	6	23	12	F-102312
26MXL	26	C/A	16.82	16.31	11	16	7	-	10	6	23	12	F-102312
27MXL	27	C/A	17.46	16.96	11	16	7	-	11	7	23	13	F-102313
28MXL	28	C/A	18.11	17.60	11	16	7	-	11	7	23	13	F-102313
30MXL	30	A/B	19.40	18.90	11	16	7	-	11	7	23	13	F-102313
32MXL	32	A/B	20.70	20.19	11	16	7	-	13	8	26	16	F-102516
36MXL	36	A/B	23.29	22.78	11	16	7	-	15	10	28	18	F-102818
40MXL	40	A/B	25.87	25.36	11	18	7	-	17	10	31	20	F-103120
48MXL	48	A/B	31.05	30.54	11	18	7	-	18	10	35	22	F-103522
60MXL	60	A/B	38.81	38.30	11	18	7	-	28	20	44	32	F-104432
72MXL	72	A/B	46.57	46.06	11	18	7	-	30	20	51	36	F-105136
84MXL	84	A/B	54.33	53.82	11	18	7	-	35	23	61	41	F-106141
96MXL	96	A/B	62.09	61.59	11	18	7	-	42	28	69	50	F-106950
120MXL	120	A/B	77.62	77.11	11	18	7	-	56	37	86	66	F-108666
