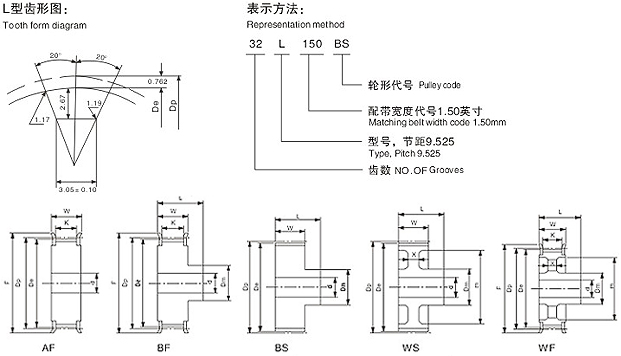

L型标准皮带宽150（38.1mm）
规格	齿数	形状	节径	外径	W	L	K	X	轮毂直径	内孔	透孔外径	档边外径	档边内径	档边型号
10L	10	A\B	30.32	29.56	45	57	40	-	20	8	-	35	22	F-153522
12L	12	A\B	36.38	35.62	45	57	40	-	25	8	-	43	28	F-154328
14L	14	A\B	42.45	41.68	45	57	40	-	30	10	-	47	34	F-154734
15L	15	A\B	45.48	44.72	45	57	40	-	32	10	-	51	36	F-155136
16L	16	A\B	48.51	47.75	45	57	40	-	34	12	-	55	39	F-155539
17L	17	A\B	51.54	50.78	45	57	40	-	35	12	-	57	41	F-155741
18L	18	A\B	54.57	53.81	45	57	40	-	36	12	-	61	41	F-156141
19L	19	A\B	57.61	56.84	45	57	40	-	38	12	-	65	50	F-156550
20L	20	A\B	60.64	59.88	45	57	40	-	40	12	-	65	50	F-156550
21L	21	A\B	63.67	62.91	45	57	40	-	42	12	-	69	50	F-156950
22L	22	A\B	66.70	65.94	45	57	40	-	44	12	-	74	53	F-157453
24L	24	A\B	72.77	72.00	45	57	40	-	44	12	-	78	58	F-157858
25L	25	A\B	75.80	75.04	45	57	40	-	44	12	-	83	63	F-158363
26L	26	A\B	78.83	78.07	45	57	40	-	44	12	-	86	66	F-158666
28L	28	A\B	84.89	84.13	45	57	40	-	50	12	-	93	75	F-157375
30L	30	A\B	90.96	90.20	45	57	40	-	50	14	-	99	78	F-159978
32L	32	A\B	97.02	96.26	45	57	40	-	50	14	-	105	84	F-1510584
34L	34	A\B	103.08	102.32	45	59	40	-	56	14	-	112	90	F-1511290
36L	36	A\B	109.15	108.39	45	59	40	-	56	14	-	115	90	F-1511590
38L	38	A\B	115.22	114.45	45	59	40	-	60	14	-	126	100	F-15126100
40L	40	A\B	121.28	120.51	45	59	40	-	60	14	-	126	100	F-15126100
42L	42	A\B	127.34	126.58	45	59	40	-	60	14	-	131	111	F-15131111
44L	44	A\B	133.40	132.64	45	59	40	-	65	14	-	138	125	F-15138125
45L	45	W	136.44	135.67	45	59	40	15	65	14	116	-	-	-
48L	48	W	145.53	144.77	45	59	40	15	65	14	124	-	-	-
50L	50	W	151.60	150.83	45	59	40	15	65	14	130	-	-	-
56L	56	W	169.79	169.02	45	59	40	15	65	14	148	-	-	-
60L	60	W	181.91	181.15	45	59	40	15	65	14	160	-	-	-
72L	72	W	218.30	217.53	45	59	40	15	65	14	197	-	-	-
84L	84	W	254.68	253.92	45	59	40	15	65	14	233	-	-	-
