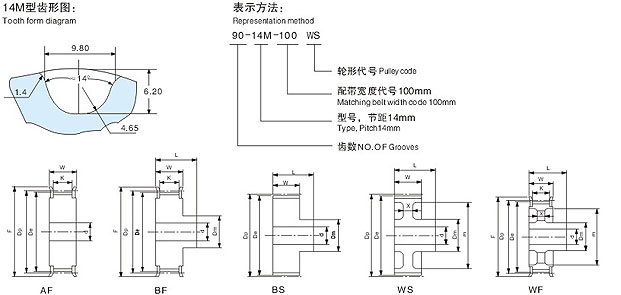

14M型标准皮带宽100mm
规格	齿数	形状	节径	外径	W	L	1K	X	轮毂直径	内孔	透孔外径	档边外径	档边内径	档边型号
28-14M	28	A/B	124.78	121.98	112	137	105	-	92	25	-	137	106	F-25137106
29-14M	29	A/B	129.23	126.44	112	137	105	-	94	25	-	141	111	F-25141111
30-14M	30	A/B	133.69	130.90	112	137	105	-	96	25	-	146	115	F-25146115
32-14M	32	A/B	142.60	139.81	112	137	105	-	100	25	-	155	123	F-25155123
34-14M	34	A/B	151.52	148.72	112	137	105	-	104	25	-	164	132	F-25164132
36-14M	36	A/B	160.43	157.63	112	137	105	-	108	30	-	173	140	F-25173140
38-14M	38	A/B	169.34	166.55	112	137	105	-	112	30	-	182	149	F-25182149
40-14M	40	B/W	178.25	175.46	112	137	105	22	114	30	136	190	158	F-25190158
42-14M	42	B/W	187.17	184.37	112	137	105	22	116	30	145	200	167	F-25200167
44-14M	44	B/W	196.08	193.28	112	137	105	22	118	30	154	208	176	F-25208176
46-14M	46	B/W	204.99	202.20	112	137	105	22	118	30	163	217	185	F-25217185
48-14M	48	B/W	213.90	211.11	112	137	105	22	120	30	172	226	194	F-25116194
56-14M	56	B/W	249.55	246.76	112	137	105	22	124	40	207	262	229	F-25262229
60-14M	60	B/W	267.38	364.59	112	137	105	22	128	40	225	280	247	F-25280247
64-14M	64	B/W	285.21	282.41	112	137	105	22	130	40	243	297	265	F-25297265
72-14M	72	B/W	320.86	318.06	112	137	105	22	134	50	279	333	301	F-25333301
80-14M	80	B/W	356.51	353.71	112	137	105	22	138	50	314	369	336	F-25369336
84-14M	84	B/W	374.33	371.54	112	137	105	22	140	50	332	387	354	F-25387354
90-14M	90	B/W	401.07	398.28	112	137	105	22	142	50	359	413	381	F-25413381
96-14M	96	B/W	427.81	425.01	112	137	105	22	146	50	385	440	407	F-25440407
112-14M	112	B/W	499.11	496.32	112	137	105	22	154	50	457	-	-	-
144-14M	144	B/W	641.71	638.92	112	137	105	22	170	60	600	-	-	-
