| 同步轮 XL型 |
|
|

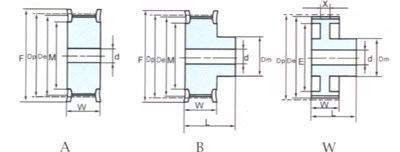

XL型同步带轮规格型号尺寸表
|
节距=5.08 |
外径公差表 |
|
|
|
标准皮带宽度
|
025
6.4mm
|
031
7.9mm
|
037
9.5mm
|
050
12.7mm
|
075
19.1
|
外径
|
公差
|
|
L10齿-30齿
|
18
|
20
|
23
|
30
|
35
|
<25.4
|
+0.05-0
|
|
L31齿-72齿
|
19
|
21
|
25
|
32
|
37
|
25.4-50.8
|
+0.08+0
|
|
W
|
11
|
13
|
15
|
18
|
25
|
50.8-101.6
|
+0.10+0
|
|
X
|
4
|
4
|
5
|
6
|
8
|
101.6-177.8
|
+0.13+0
|
|
-
|
-
|
-
|
-
|
-
|
-
|
177.8-304.8
|
+0.15+0
|
|
|
齿数任意选择，特殊型由用户提供图纸，如用户按本公司型号生产，请告知内孔与键槽即可
|
|
规格
|
型号
|
齿数
|
节径
|
外径
|
台肩直径
|
内孔
|
透孔外径
|
档边外径
|
档边内径
|
档边型号
|
|
10XL
|
A.B
|
10
|
16.17
|
15.66
|
9.5
|
6
|
-
|
23
|
12
|
F-102312
|
|
11XL
|
A.B
|
11
|
17.79
|
17.28
|
9.5
|
6
|
-
|
25
|
13
|
F-102513
|
|
12XL
|
A.B
|
12
|
19.40
|
18.90
|
10
|
6
|
-
|
25
|
14
|
F-102514
|
|
14XL
|
A.B
|
14
|
22.64
|
22.13
|
15
|
6
|
-
|
28
|
18
|
F-102818
|
|
15XL
|
A.B
|
15
|
24.64
|
23.75
|
15
|
6
|
-
|
28
|
18
|
F-102818
|
|
16XL
|
A.B
|
16
|
25.87
|
25.36
|
16
|
6
|
-
|
31
|
20
|
F-103120
|
|
18XL
|
A.B
|
18
|
29.11
|
28.60
|
19
|
6
|
-
|
33
|
22
|
F-103322
|
|
19XL
|
A.B
|
19
|
30.72
|
30.22
|
19
|
6
|
-
|
35
|
22
|
F-103522
|
|
20XL
|
A.B
|
20
|
32.34
|
31.83
|
20
|
6
|
-
|
38
|
26
|
F-103826
|
|
21XL
|
A.B
|
21
|
33.96
|
33.45
|
22
|
6
|
-
|
38
|
26
|
F-104328
|
|
22XL
|
A.B
|
22
|
35.57
|
35.07
|
24
|
8
|
-
|
43
|
28
|
F-104432
|
|
24XL
|
A.B
|
24
|
38.81
|
38.30
|
27
|
8
|
-
|
44
|
32
|
F-104432
|
|
25XL
|
A.B
|
25
|
40.43
|
39.92
|
28
|
8
|
-
|
44
|
32
|
F-104734
|
|
26XL
|
A.B
|
26
|
42.04
|
41.53
|
29
|
8
|
-
|
47
|
34
|
F-104836
|
|
28XL
|
A.B
|
28
|
45.28
|
44.77
|
30
|
8
|
-
|
48
|
36
|
F-104836
|
|
30XL
|
A.B
|
30
|
48.51
|
48.00
|
33
|
8
|
-
|
55
|
39
|
F-105539
|
|
32XL
|
A.B
|
32
|
51.74
|
51.24
|
38
|
8
|
-
|
57
|
41
|
F-105741
|
|
34XL
|
A.B
|
34
|
54.98
|
54.47
|
38
|
8
|
-
|
61
|
41
|
F-106141
|
|
36XL
|
A.B
|
36
|
58.21
|
57.70
|
38
|
8
|
-
|
61
|
41
|
F-106141
|
|
38XL
|
A.B
|
38
|
61.45
|
60.94
|
38
|
8
|
-
|
65
|
50
|
F-106550
|
|
40XL
|
A.B
|
40
|
64.68
|
64.17
|
38
|
8
|
-
|
69
|
50
|
F-106950
|
|
42XL
|
A.B
|
42
|
67.91
|
67.41
|
38
|
8
|
-
|
74
|
53
|
F-107453
|
|
44XL
|
A.B
|
44
|
71.15
|
70.64
|
38
|
10
|
-
|
78
|
58
|
F-107858
|
|
45XL
|
W
|
45
|
72.77
|
72.26
|
38
|
10
|
60
|
-
|
-
|
-
|
|
48XL
|
W
|
48
|
77.65
|
77.11
|
38
|
10
|
64
|
-
|
-
|
-
|
|
50XL
|
W
|
50
|
80.85
|
80.34
|
38
|
10
|
67
|
-
|
-
|
-
|
|
56XL
|
W
|
56
|
90.55
|
90.04
|
38
|
10
|
74
|
-
|
-
|
-
|
|
60XL
|
W
|
60
|
97.02
|
96.51
|
38
|
10
|
83
|
-
|
-
|
-
|
|
70XL
|
W
|
70
|
113.19
|
112.68
|
38
|
10
|
100
|
-
|
-
|
-
|
|
72XL
|
W
|
72
|
116.43
|
115.92
|
38
|
10
|
102
|
-
|
-
|
|
|
|
| |
|
|
|
|
|
|
|
